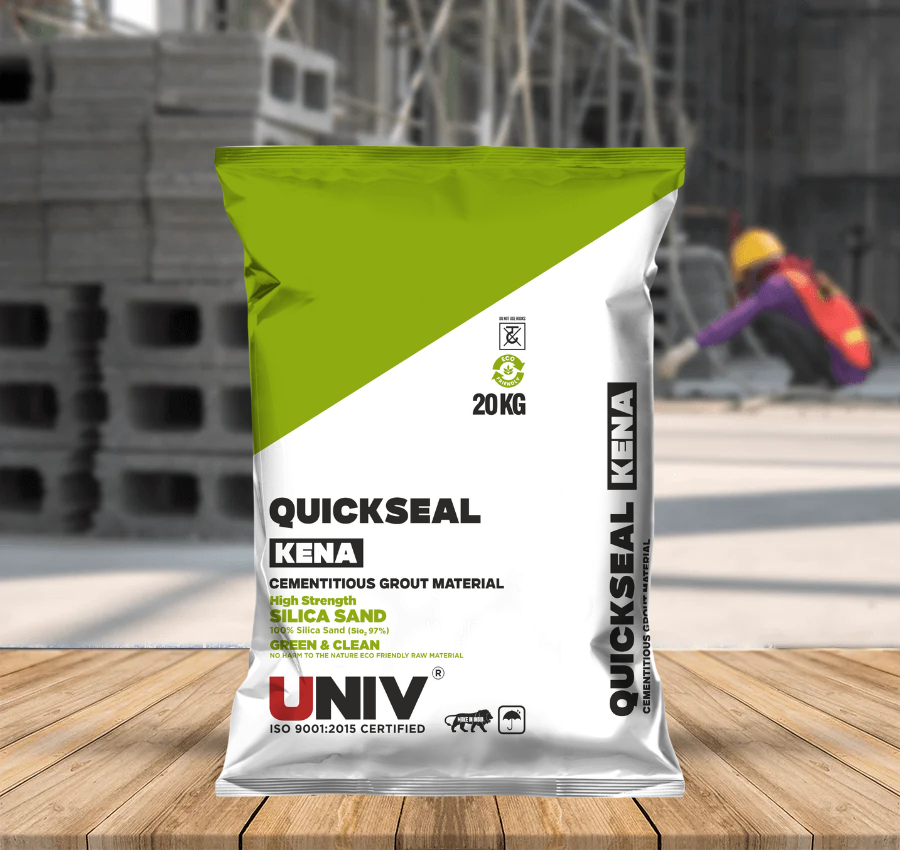

QUICKSEAL CEMENTITIOUS GROUT MATERIAL

UNIV® QUICKSEAL CEMENTITIOUS GROUT MATERIAL – KENA is a high-strength cementitious grout material specially developed for flexible and rigid wearing courses. It is formulated with high-strength silica sand and 100% silica sand technology to provide excellent bonding, durability, moisture resistance and resistance against braking and accelerating effects of traffic.

Reference Standard

IS 516 (Part 2 / Sec 1)
IRC SP 125

Area of Application

UNIV® QUICKSEAL CEMENTITIOUS GROUT MATERIAL – KENA can be applied for:

Flexible wearing course
Rigid wearing course
Bituminous surface
Concrete surface
Pavement void filling
Crack and joint sealing
Pavement rehabilitation
Pavement slab reinforcement
Soil stabilization
Road shoulder stabilization

Benefits

High Strength: Characteristic compressive strength of 40 N/mm² @ 28 days.
Excellent Fluidity: 20–50 Sec as per ASTM C 939.
High Void Filling: Provides 97–100% full-depth grouting.
Traffic Resistant: Suitable for braking and accelerating effects of traffic.
Moisture Resistant: Provides a durable and moisture-resistant surface.
Low Permeability: Permeability of 0.00 m/sec.
Strong Bonding: Excellent bonding with surrounding material.
Non-Shrink: Helps reduce cracking.
Self-Compacting: Helps in easy densification.
Self-Curing: Helps control heat of hydration.
Durable: Pure silica of various grades for improved durability.
Flexural Resistance: Suitable for vehicular loading.

Technical Information

Attributes	Test Result
Initial Setting Time	4–5 Hrs
Final Setting Time	6–10 Hrs
Characteristic Compressive Strength @ 28 Days	40 N/mm²
Flexural Strength @ 28 Days	3.50 N/mm²
Fluidity – ASTM C 939	20–50 Sec
Voids in CGM @ 7 Days	2–3%
Full Depth Grouting	97–100%
Compressive Strength @ 28 Days	>40 N/mm²
Resilient Modulus @ 28 Days, 35°C	>10,000 N/mm²
Design Resilient Modulus	5,000 N/mm²
Flexural Strength @ 28 Days	Min. 2.0 N/mm²
Indirect Tensile Strength @ 28 Days, 35°C	Min. 1.0 N/mm²
Retained ITS Strength @ 28 Days	97%
Permeability	0.00 m/sec

CGM Thickness Layer

3 mm for traffic up to 4–5 MSA.
Application thickness should be finalized according to designed traffic and project requirements.

How to Apply

Surface Preparation:
Clean the wearing course surface and remove loose dust, dirt and other contaminants before application.

Application:
Pour UNIV® QUICKSEAL Cementitious Grout Material – KENA over the prepared wearing course and spread uniformly using suitable manual or mechanical methods.

Sweeping, squeezing or similar techniques may be used to ensure proper spreading and penetration into surface voids.

The grout should be allowed to flow naturally into the voids of the bituminous/concrete surface. Where required, protect the edges to prevent grout slurry from flowing out.

For improved surface texture and penetration, broom the grouted surface manually or mechanically.

Shelf Life

It has a shelf life of 6 months from the date of manufacture.

Store at a cool and dry place.

Packing Size

20 Kg Bag Size

Precaution – Safety

As per health & safety rules, suitable safety accessories should be used:

a) Safety gloves
b) Safety goggles
c) Dust & nose mask
d) Helmet

In case of accidental contact with eyes, immediately wash with clean water and seek medical assistance if required.

Avoid breathing dust.

DISCLAIMER

All results and facts stated in this document are applicable under normal conditions and when products are used according to the provided instructions and guidelines.

UNIV® CHEMICAL & ADHESIVES assumes no responsibility for deviations or dissatisfaction due to environmental, climatic, temperature, humidity factors, site conditions, or consumer usage methods.
