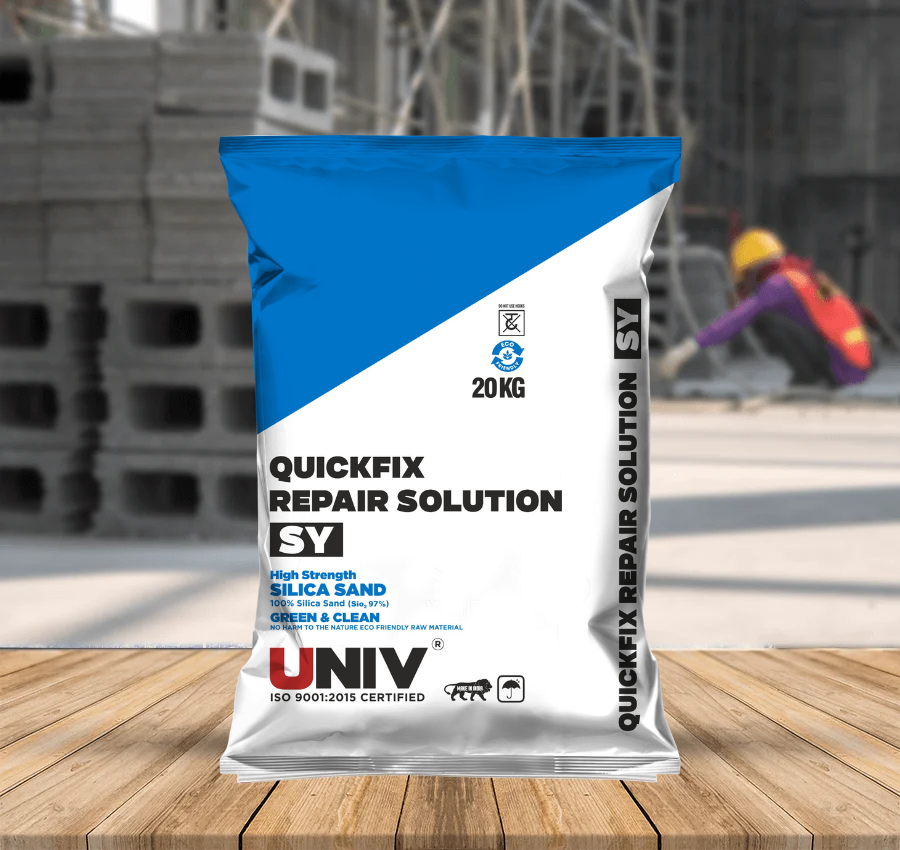

QUICKFIX REPAIR SOLUTION

UNIV® QUICKFIX REPAIR SOLUTION – SY is a high-strength repair solution specially designed for the immediate repair of large-size potholes and damaged areas in asphalt and concrete roads.

The product is designed to be mixed with coarse aggregate of 10 mm size and placed into prepared potholes or patch-repair locations. It provides strong bonding with the surrounding road material and develops high compressive and flexural strength for durable road repairs.

QUICKFIX REPAIR SOLUTION – SY provides rapid hardening, excellent bonding, reduced permeability and a durable repair solution suitable for road maintenance and patching applications.

Reference Standard

IS 516 (Part 2 / Sec 1)

Area of Application

UNIV® QUICKFIX REPAIR SOLUTION – SY can be used for:

Large-size pothole repairs
Asphalt road repairs
Concrete road repairs
Road patching and damaged surface restoration
Localized road surface repairs
Repair of potholes requiring rapid opening to traffic

Application

Pour the pothole or patch-repair location with UNIV® QUICKFIX REPAIR SOLUTION – SY mixed with 10 mm coarse aggregate down to the prepared area.
Apply the mixed material in layers of approximately 100 mm thickness using suitable trowels or shovels.
Each 100 mm layer should be properly compacted using a hand rammer or vibratory mechanical rammer.
Continue filling the pothole in approximately 100 mm layers until the required road level is achieved.
It is recommended to fill the pothole in 100 mm layers up to the road level within 25 minutes of pouring.
Finally, level and finish the repaired surface using a suitable trowel.

How It Works

Binding of individual particles
Microfine particles help reduce permeability
Rapid hardening to withstand traffic movement
Strong bonding with surrounding material
Non-shrink characteristics help reduce cracking
Self-compacting properties for easy densification
Self-curing characteristics help control heat of hydration
Flexural resistance to withstand vehicular loading
Pure silica of various grades for improved durability
Rounded coarse aggregates provide strength and stability

Advantages

High Strength: Develops characteristic compressive strength of up to 40 N/mm² at 28 days.
Rapid Setting: Initial setting time is approximately 30 minutes, allowing quick repair operations.
Fast Final Setting: Final setting time is approximately 4 hours.
Excellent Bonding: Bonds effectively with existing road surfaces and surrounding material.
Suitable for Moist Surfaces: Can adhere effectively even on moist surfaces.
Monolithic Bond: Forms a strong bond with the existing particles within the pothole.
Durable: Gains strength over time and becomes increasingly durable.
Hard & Impermeable: Provides a hard, consistent and impermeable repair solution.
Easy Application: Can be applied directly without the need for additional tack or primer coating, as stated in the product TDS.
Traffic Resistance: Rapid hardening and flexural resistance help the repaired area withstand vehicular loads.
Economical & Environmentally Friendly: Provides an economical and environmentally friendly repair solution.

Technical Information

Property	Typical Value
Initial Setting Time of Material	30 Minutes
Final Setting Time of Material	4 Hours
Characteristic Compressive Strength @ 28 Days	40 N/mm²
Flexural Strength @ 28 Days	3.5 N/mm²
Initial Setting Time by Penetration Resistance	30 Minutes
Final Setting Time by Penetration Resistance	4 Hours
Characteristic Compressive Strength @ 28 Days	40–60 N/mm²
Flexural Strength @ 28 Days	5–7 N/mm²
Resilient Modulus @ 28 Days, 35°C	>10,000 N/mm²*
Design Resilient Modulus Value	5,000 N/mm²
Permeability	0.00 m/sec
Drying Shrinkage	—

* For design purposes, the resilient modulus value can be taken as 5,000 N/mm².

Recommended Repair Layer

Recommended layer thickness: 100 mm per layer
Each layer should be properly compacted using a hand rammer or vibratory mechanical rammer.
Continue application layer by layer until the required road level is achieved.

Curing / Setting

The material has an initial setting time of approximately 30 minutes and a final setting time of approximately 4 hours under the specified test conditions.

The product is designed for rapid repair applications where early hardening and development of strength are required.

Shelf Life

The product has a shelf life of 90 days from the date of manufacture.

Store in a cool and dry place.

Packing Size

20 Kg Bag Size

Limitations / Restrictions

Application should be carried out according to the recommended layer thickness and compaction procedure.
Each layer should be properly compacted before applying the subsequent layer.
Product performance may vary depending on site conditions, aggregate quality, temperature, moisture and application practices.

Precautions – Safety

Use appropriate personal protective equipment during handling and application of the product, including:

Safety gloves
Safety goggles
Dust mask
Safety helmet

Avoid unnecessary exposure to dust during handling and mixing. In case of accidental contact with eyes, immediately rinse thoroughly with clean water and seek medical assistance if required.

Disclaimer

All results and technical information stated in this document are applicable under normal conditions and when the product is used according to the recommended instructions and guidelines.

UNIV® CHEMICAL & ADHESIVES assumes no responsibility for deviations or dissatisfaction resulting from environmental, climatic, temperature, humidity, site conditions, material quality, or improper application methods.
